RightMark Audio Analyzer test report
| Testing device | PHASE X24 FW (0) MC Out |
| Sampling mode | 16-bit, 48 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.1.2 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -1.2 dB / -1.2 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.01, -0.02 |
Excellent |
| Noise level, dB (A) | -97.0 |
Excellent |
| Dynamic range, dB (A) | 93.3 |
Very good |
| THD, % | 0.0058 |
Very good |
| THD + Noise, dB (A) | -80.5 |
Good |
| IMD + Noise, % | 0.012 |
Very good |
| Stereo crosstalk, dB | -96.4 |
Excellent |
| IMD at 10 kHz, % | 0.011 |
Very good |
| General performance | Very good |
Frequency response
 MC Out/fr.png)
| From 20 Hz to 20 kHz, dB | -0.19, +0.01 |
| From 40 Hz to 15 kHz, dB | -0.02, +0.01 |

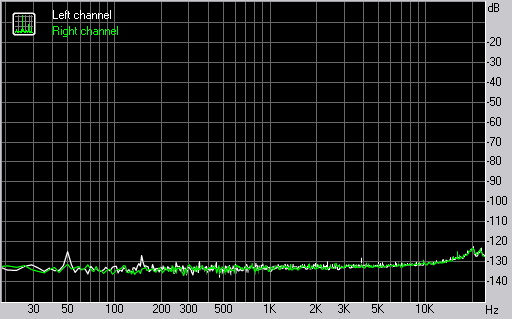

Noise level
 MC Out/noise.png)
Left |
Right |
|
| RMS power, dB | -95.0 |
-95.1 |
| RMS power (A-weighted), dB | -96.9 |
-97.0 |
| Peak level, dB FS | -76.0 |
-76.0 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
 MC Out/dynamics.png)
Left |
Right |
|
| Dynamic range, dB | +92.4 |
+92.4 |
| Dynamic range (A-weighted), dB | +93.3 |
+93.3 |
| DC offset, % | -0.00 |
-0.00 |

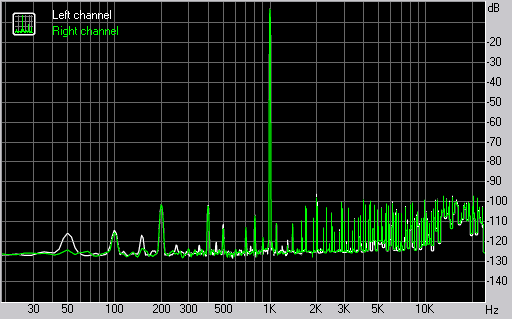

THD + Noise (at -3 dB FS)
 MC Out/thd.png)
Left |
Right |
|
| THD, % | +0.0059 |
+0.0057 |
| THD + Noise, % | +0.0107 |
+0.0106 |
| THD + Noise (A-weighted), % | +0.0095 |
+0.0093 |

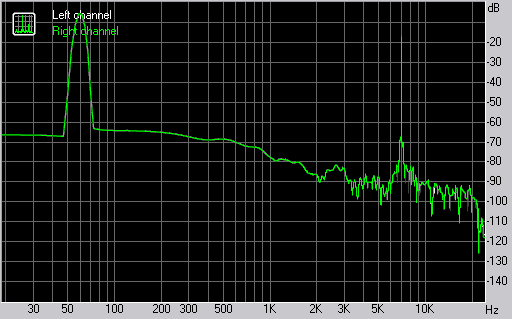

Intermodulation distortion
 MC Out/imd.png)
Left |
Right |
|
| IMD + Noise, % | +0.0119 |
+0.0120 |
| IMD + Noise (A-weighted), % | +0.0104 |
+0.0105 |

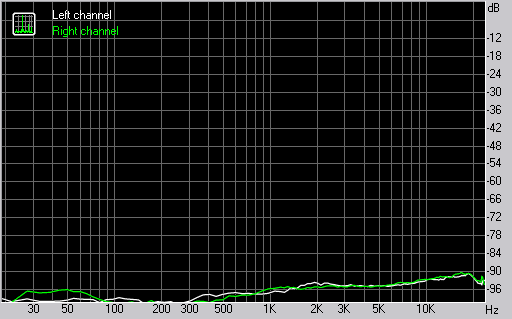

Stereo crosstalk
 MC Out/cross.png)
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -98 |
-99 |
| Crosstalk at 1000 Hz, dB | -96 |
-95 |
| Crosstalk at 10000 Hz, dB | -92 |
-92 |

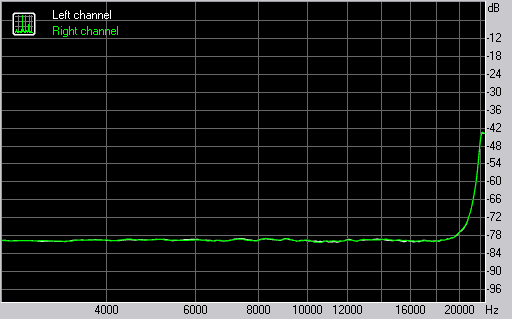

IMD (swept tones)
 MC Out/imdswept.png)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0109 |
0.0108 |
| IMD + Noise at 10000 Hz, | 0.0104 |
0.0106 |
| IMD + Noise at 15000 Hz, | 0.0105 |
0.0106 |
