RightMark Audio Analyzer test report
| Testing device | DMX 6Fire Waveplay 1/2 input 1/2 |
| Sampling mode | 24-bit, 96 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.1.2 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -1.0 dB / -1.1 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.01, -0.06 |
Excellent |
| Noise level, dB (A) | -108.2 |
Excellent |
| Dynamic range, dB (A) | 108.2 |
Excellent |
| THD, % | 0.0005 |
Excellent |
| THD + Noise, dB (A) | -97.1 |
Excellent |
| IMD + Noise, % | 0.0020 |
Excellent |
| Stereo crosstalk, dB | -102.8 |
Excellent |
| IMD at 10 kHz, % | 0.0015 |
Excellent |
| General performance | Excellent |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.12, +0.01 |
| From 40 Hz to 15 kHz, dB | -0.06, +0.01 |

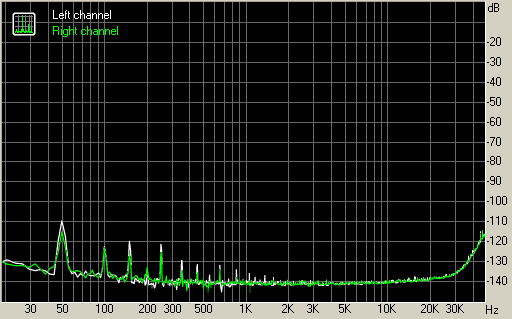

Noise level
Left |
Right |
|
| RMS power, dB | -105.3 |
-106.2 |
| RMS power (A-weighted), dB | -108.1 |
-108.3 |
| Peak level, dB FS | -74.1 |
-75.3 |
| DC offset, % | +0.0 |
+0.0 |

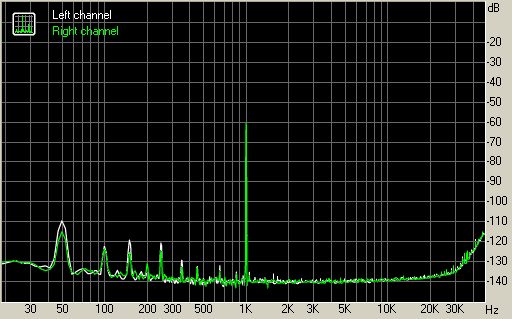

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +105.5 |
+106.4 |
| Dynamic range (A-weighted), dB | +108.2 |
+108.3 |
| DC offset, % | +0.00 |
+0.00 |

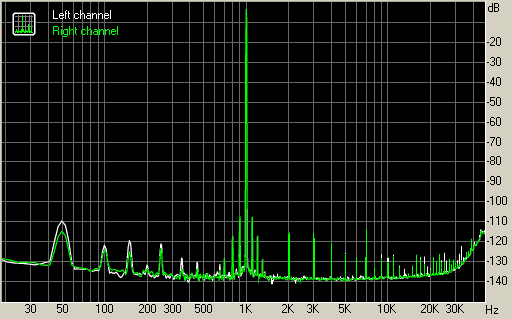

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0004 |
+0.0005 |
| THD + Noise, % | +0.0015 |
+0.0014 |
| THD + Noise (A-weighted), % | +0.0014 |
+0.0014 |

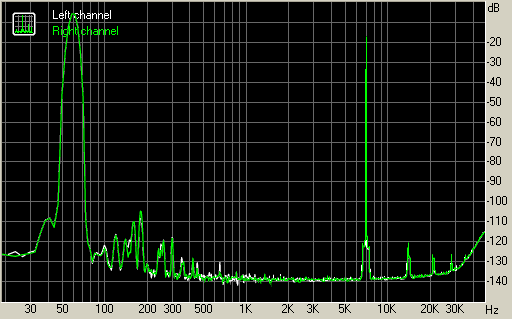

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0019 |
+0.0020 |
| IMD + Noise (A-weighted), % | +0.0012 |
+0.0012 |

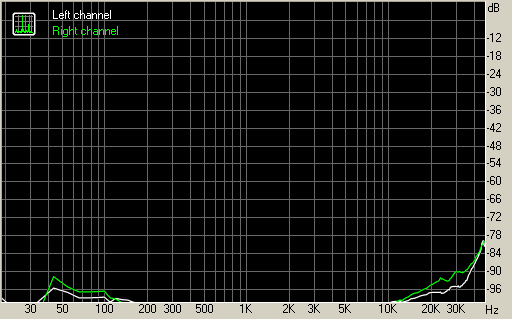

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -98 |
-96 |
| Crosstalk at 1000 Hz, dB | -101 |
-103 |
| Crosstalk at 10000 Hz, dB | -100 |
-100 |

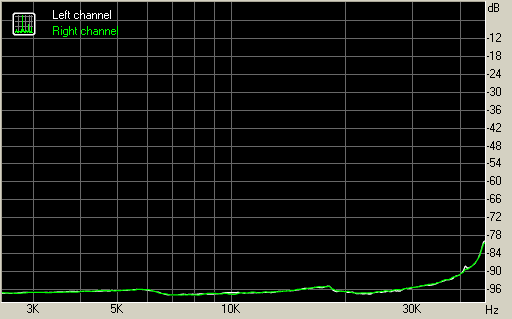

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0015 |
0.0015 |
| IMD + Noise at 10000 Hz, | 0.0014 |
0.0013 |
| IMD + Noise at 15000 Hz, | 0.0016 |
0.0016 |
