RightMark Audio Analyzer test report
| Testing device | DMX 6Fire Waveplay 1/2 |
| Sampling mode | 24-bit, 96 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.1.2 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -8.2 dB / -8.2 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +6.99, -3.98 |
Very poor |
| Noise level, dB (A) | -106.2 |
Excellent |
| Dynamic range, dB (A) | 106.2 |
Excellent |
| THD, % | 0.0009 |
Excellent |
| THD + Noise, dB (A) | -91.4 |
Very good |
| IMD + Noise, % | 0.0034 |
Excellent |
| Stereo crosstalk, dB | -103.1 |
Excellent |
| IMD at 10 kHz, % | 0.224 |
Average |
| General performance | Very good |

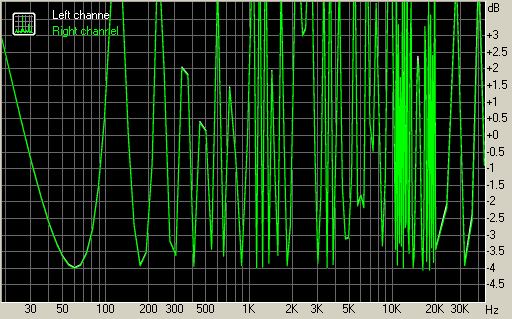

Frequency response
| From 20 Hz to 20 kHz, dB | -4.02, +6.99 |
| From 40 Hz to 15 kHz, dB | -3.98, +6.99 |
Noise level
Left |
Right |
|
| RMS power, dB | -104.6 |
-104.7 |
| RMS power (A-weighted), dB | -106.1 |
-106.3 |
| Peak level, dB FS | -76.2 |
-75.6 |
| DC offset, % | +0.0 |
+0.0 |

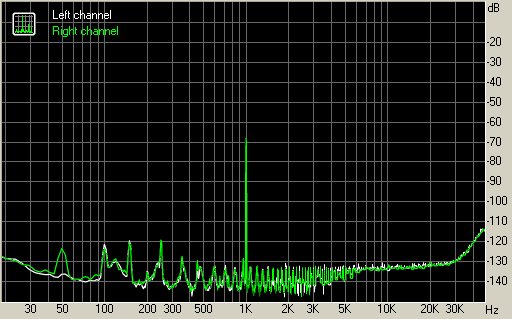

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +104.5 |
+104.8 |
| Dynamic range (A-weighted), dB | +106.0 |
+106.4 |
| DC offset, % | +0.00 |
+0.00 |

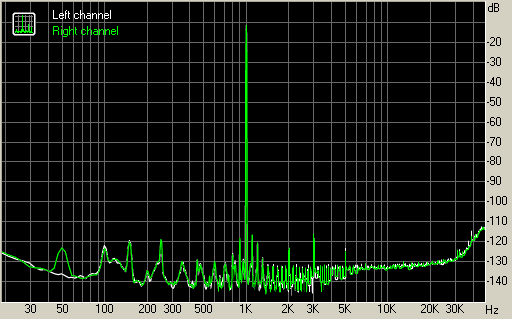

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0009 |
+0.0009 |
| THD + Noise, % | +0.0031 |
+0.0030 |
| THD + Noise (A-weighted), % | +0.0027 |
+0.0026 |

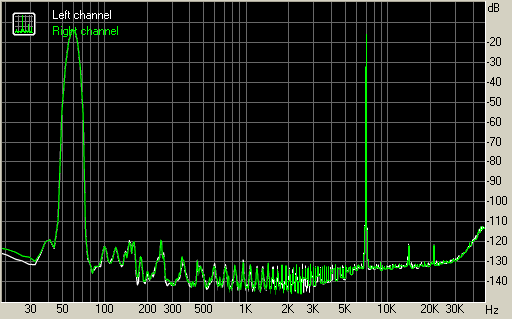

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0035 |
+0.0034 |
| IMD + Noise (A-weighted), % | +0.0029 |
+0.0029 |

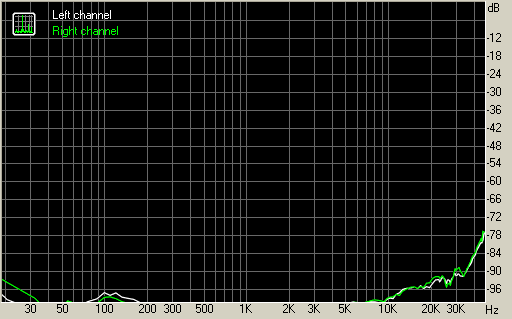

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -96 |
-98 |
| Crosstalk at 1000 Hz, dB | -102 |
-102 |
| Crosstalk at 10000 Hz, dB | -98 |
-98 |

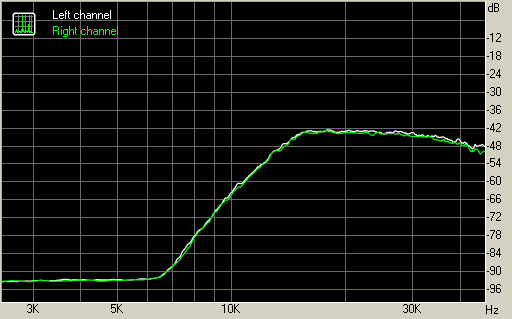

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0023 |
0.0022 |
| IMD + Noise at 10000 Hz, | 0.0673 |
0.0605 |
| IMD + Noise at 15000 Hz, | 0.6197 |
0.5893 |
